Description

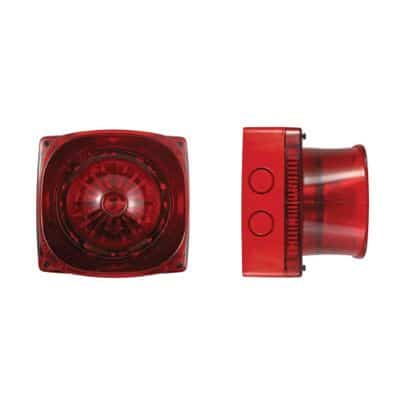

Zeta Addressable Combined Sounder and Flasher
Brand : ZETA
Model : MKII-AMTSF/R
Country of Origin: UK
Description :
The Maxitone addressable sounder is a large horn sounder suitable for many applications. It has been upgraded to work on the Zeta Fyreye II protocol. The sounder is available in red or white, and the sounder flasher version is available in transparent red. It has a large back box with knock-out cable entries, which has plenty of room for fitting the cables. It has an internal 8 way dip switch for setting the device address, and a sound output of 94dBA @ 1m.
Technical Specifications:
| Model |
MKII-AMT/R |
MKII-AMT/W |
MKII-AMTSF/R |
MKII-AMTF/R |
| Part No. |
42-620 |
42-621 |
42-622 |
42-623 |
| Color |
Red |
White |
Red |
Red Flasher Only |
| Quiescent Current |
600μA |
600μA |
610μA |
600μA |
| Alarm Current @ 24V |
7mA |
7mA |
10.6mA |
5.5mA |
| Operating Voltage | 17vdc – 28vdc | |||
| Operating Temperature | -10°C to 50°C | |||
| Minimum Operating Temperature | 0°C | |||
| IP Rating | IP65 | |||
| Size | 124 x 130 x 100mm | |||
| Weight | 357g | |||
