Description

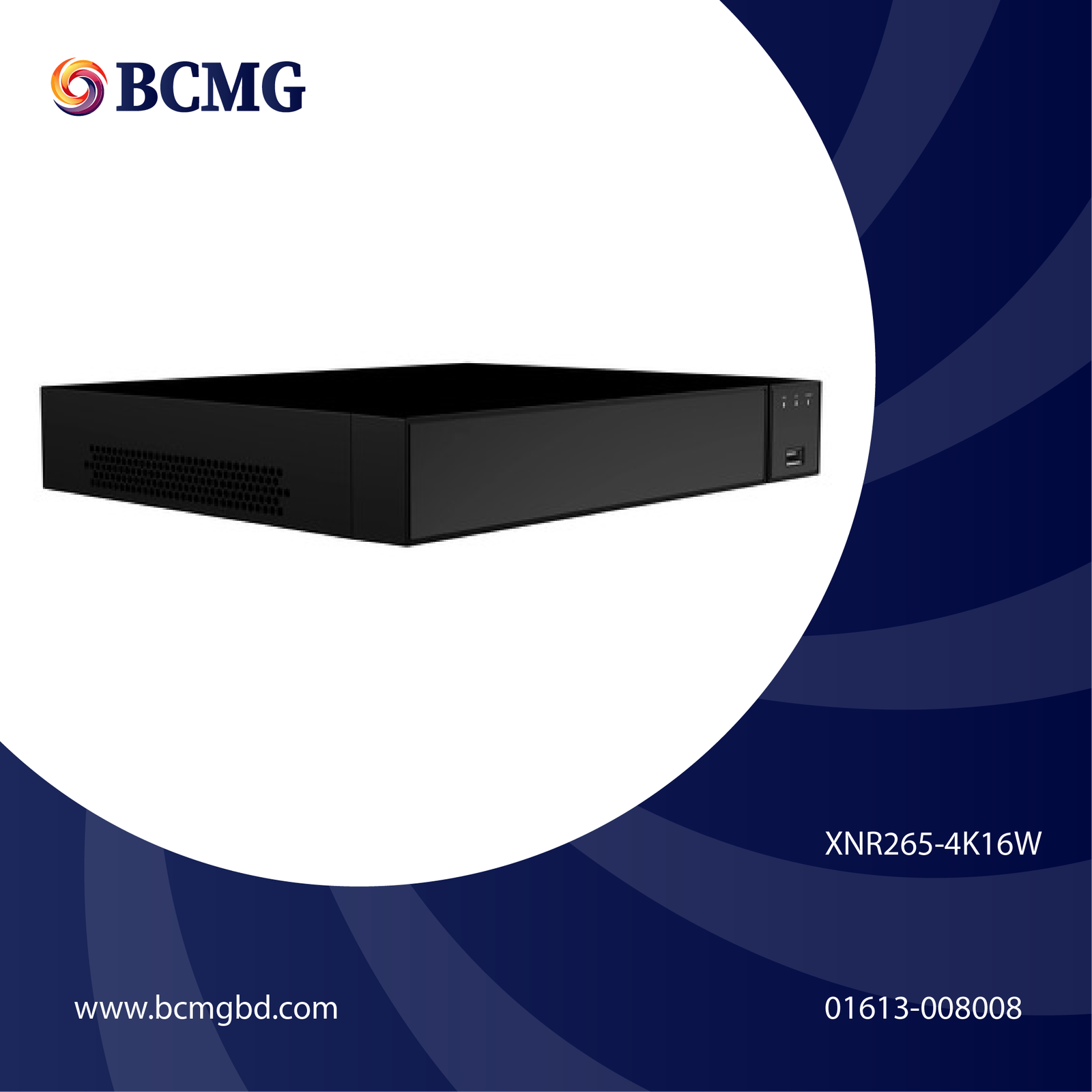

| Model No. | XNR265-4K16W | |
| CPU | Novatek SoC (NDAA Compliant) | |
| Operating System | Embedded Linux | |
| Digital Video Input | 16CH up to 4K (3840×2160) | |
| Compression Format | H.264 / H.264+ / H.265 / H.265+ | |
| Video Output Resolution | HDMI | 1024×768@60Hz / 1280×720@60Hz / 1280×1024@60Hz / 1920×1080@60Hz / 3840×2160(4K)@30Hz |
| VGA | 1920Ă—1080P@60Hz / 1280Ă—1024@60Hz / 1280Ă—720@60Hz / 1024Ă—768@60Hz | |
| Split Screen | 1/4/9/16 | |
| Resolution | 4K / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 | |
| Audio | Input: 1CH RCA | |
| Output: 1*RCA (Linear, 1kΩ) | ||
| Bit Rate: 64kbps | ||
| Compression: G711u / G711a / ADPCM_DVI4 | ||
| Voice Intercom | Support one-way | |
| Alarm | Input: 4CH (Greater than 1.5V / Less than 20V) | |
| Output: 4CH (Less than 24V@1A) | ||
| Motion Detection | 16CH 396 area (22×18) | |
| Trigger Event Log | Recording / Email / FTP / Snapshot / Screen Tips / Buzzer | |
| Digital Zoom | Support | |
| OSD Display | Camera Title / Time / Record / Motion Detection / Event Alarm | |
| Recording Rate * PAL@25fps * NTSC@30fps | 4K@10CHÂ *25/30fps 5MP/4MP/3MP/1080P/960P/720P/D1@16CH *25/30fps | |
| Recording Mode | Manual / Timer / Motion Detection / Smart Event | |
| Local Playback | 1CH: 4K/5MP @30fps 2CH: 4MP/3MP @30fps 4CH: 1080/960/720P @30fps | |
| Decoding Capability | 4CH 1080P@30fps | |
| Remote Sync. Playback | Support | |
| Search Mode | All / Channel / Manual / Time / Date / Motion Detection / Event Alarm / Tag Search | |
| Playback Mode | Play / Pause / Stop / Fast Play / Slow Play / Rewind / Single Frame Forward and Rewind / Digital Zoom / Full Screen | |
| Backup Method | USB device (FAT32) / Network | |
| Network Port | 1*RJ-45 10/100/1000M Ethernet Built-in 6KV Anti-Static Protection | |
| Input Bandwidth | 100M | |
| Network Protocol | TCP/IP / HTTP / UPnP / DNS / NTP / SMTP / DHCP / FTP / DDNS / RTSP / RTCP / P2P / PPPoE | |
| P2P | Support | |
| ONVIF Version | ONVIF 2.8 | |
| Browser | IE8~11 / Chrome / Firefox / Safari | |
| VMS (PC Client) | Support Windows 7 / Windows 8 / Windows 10 / MAC OS | |
| Mobile Devices | iPhone / iPad / Android / Android Pad | |
| Hard Drive Port | 1*SATA 2.5” / 3.5” (Each 8TB Max.) | |
| USB Port | 2*USB2.0 | |
| RS485 | 1*RS485 | |
| Power Supply | DC12V 2A | |
| Power Consumption | ≤6W (w/o HDD) | |
| Operating Environment | Temperature: -10°C to 50°C (14°F to 122°F) / Humidity: 10%~90% Non-condensing | |
| Dimensions | 260(W)x215(D)x43(H) mm | |
| Net Weight | 2KG (w/o HDD) | |
