Description

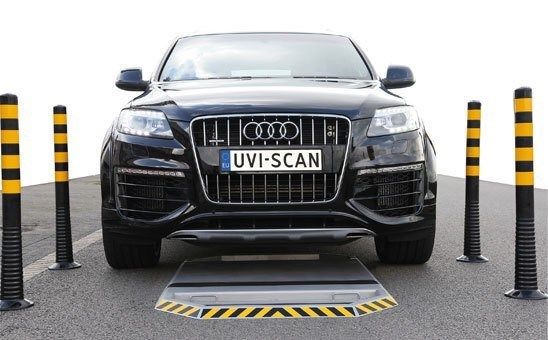

Under Vehicle Scanner Surveillance System (UVSS) in Bangladesh:
Vehicle inspection is critical to prevent illegal items from entering places with high security. UVSS (Under Vehicle Surveillance System) uses machine vision technology to grab the full and high-resolution image of vehicle chassis. It works with industrial line scan camera.
Under Vehicle System Quick Details:
Place of Origin: Germany
Brand Name: Varito
Model Number: AT3300
Resolution: 5000*2048 pixels
Camera: Sensor: line scan CCD
Power Supply: 24VDC, 3A
Dimension: 1200 x 350 mm
Storing Temperature: Range -25 degree to +70 degree
Scanning Technology: Line scanning
Viewing Angles: ≥170°
Vehicle Speed: 1-65 km/h
Warranty: 1 Year
Under Vehicle Surveillance Features:
| Camera: | Sensor: line scan CCD |
| Resolution: | 5000*2048 pixels |
| Power Supply: | 24VDC, 3A |
| Illumination: | LED, Power Supply: 24VDC,150W |
| Size: 1200mm x 350mm | 1200mm x 350mm |
| Storing Temperature: | Range -25 degree to +70 degree |
Under Vehicle System Configuration:
| Brand: | Varito (UFO6377H-SP1-953) |
| CPU: | Intel® Core (TM) 2 Duo CPU |
| P8600@ 2.4GHz or higher | |
| Memory: | 2G (optional 4G) |
| Graphics: | Inter(R) Gen 5.0 Integrated Graphics Engine |
| Hard Disk: | SATA2 Hard Disk 500G |
| Dual LAN (At least one Intel Gigabit) | |
| USB2.0 (Up to 4 pieces) | |
| Monitor: | 22inch LCD, resolution up to 1920*1080 |
| Scene Video Record: | 4 channel, Compression algorithm of scene video: H264 |
Benefits of Under Vehicle Scanning System
Clear and Sharp Image
• High resolution with 2K per line, max image resolution up to 20MP.
• Low image distortion, high image grey level up to 11.
Full Integration
• Supports automatic number-plate recognition for various countries with ANPR camera.
• Supports barrier integration and centralized management system.
High Efficiency
• Supports max 80km/h vehicle speed.
• Less than 1s to synthesize a whole image.
High Reliability
• Wide working temperature -35°C ~ + 70°C.
• IP68 dustproof and waterproof.
Key Products:
Stationary UVSS Scan Module
Field of view: 180°
Compatibility: Chassis height: ≥60mm(0.19ft)
Chassis width: ≤4500mm(14.8ft)
Load-Bearing: 50t(110000lb)
Illumination: 480W dynamic LED array
Weight: 50kg(110lb)
Dimensions: 1200mmx322mmx290mm (47.2”x12.7”x11.4”)
Portable UVSS Scan Module
Field of view: 170°
Compatibility: Chassis height: ≥80mm(0.26ft)
Chassis width: ≤4500mm(14.8ft)
Load-Bearing: 10t(22000lb)
Illumination: 250W dynamic LED array
Weight: 15kg(33lb)
Dimensions: 490mmx398mmx88mm (19.3”x15.7”x3.5”)
