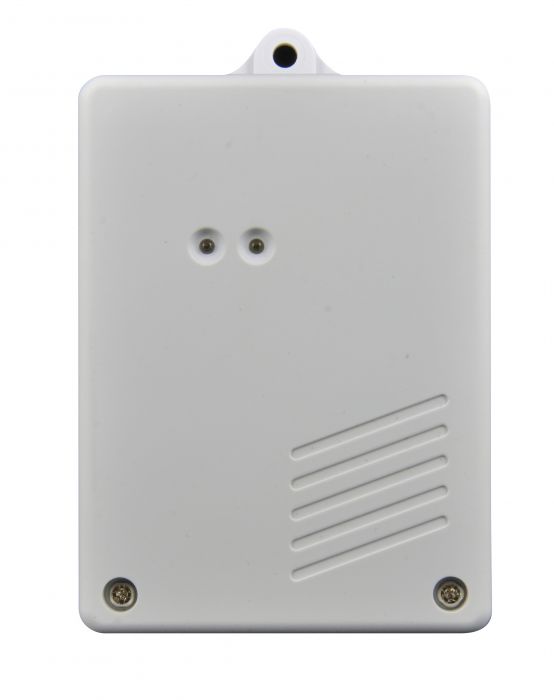

RP-2SN Repeater RP-2S

Description

RP-2SN Repeater RP-2S

Input Power

7V/850mA power adapter

Battery

4.8V/800mAH Ni-MH

Power consumption

26mA @ standby, with battery switch ON

Maximum Capacity

10 sensors or transmitters

Dimensions

77 (W) x115 (H) x27 (D) mm

Weight

About 128g, excluding power adapter

The RP-2S is a wireless signal repeater designed to extend the communication range between devices in security and monitoring systems. Manufactured by Scientech Electronics, it is commonly used in conjunction with their LS-30 Base Unit.​climax.com.tw

🔧 Key Features

• Power Source: Operates on a AAA alkaline battery.

• Battery Life: Approximately 3 years.

• Transmission: Utilizes a heartbeat signal for communication.

• Supervision: Fully supervised, providing tamper and low battery alerts.

• Mounting: Designed for easy installation with the transmitter on the fixed frame and the magnet on the movable part (door or window).

• Testing: Features a TEST button for functionality checks.​

📘 Installation and Testing

• Enrollment: To enroll the RP-2S in the LS-30 Base Unit, set the base unit to “Installer Mode,” enter the installer password, select “Set Device,” then “Enroll Device,” and choose “Burglar Sensor.” Follow the prompts to complete enrollment.

• Mounting: Use the base of the RP-2S as a template to mark and drill holes for mounting. Attach the transmitter base using the provided screws, ensuring the gap between the magnet and the marked side of the transmitter is within 1 cm when the door/window is closed.

• Testing: Momentarily open the door/window to verify that the transmission LED lights up, indicating that the transmitter is sending a signal.​

For more detailed information, you can refer to the user manual available at Manualzz.​manualzz.com

If you need assistance with purchasing or integrating the RP-2S into your security system, feel free to ask!
