Description

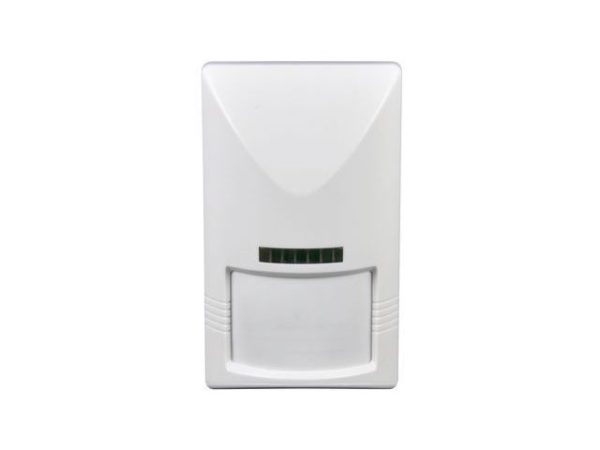

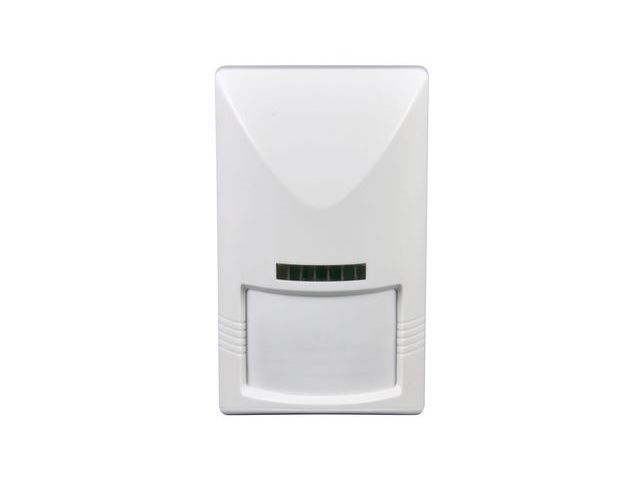

PIR-3SP Pet-immune PIR sensor
| Detector Type | dual element |
| Coverage Angle | 110o |
| Pet-immunity | Up to 18kg, 60cm high |
| Effective Distance | Max. 12 m @ ambient temp. 25℃ |
| RFI Immunity | Ave. 20V/m (10~10000MHZ) |
| Detectable Speed | 0.3~1.5m/sec. |
| Power | two AAA alkaline batteries |
| Current | 10uA @ standby, 12mA @ activation |
| Estimated Battery Life | 2 years (@ actuated 40 times/day) |
| Pulse Count | 2 or 4 pulses selectable |
| Mounting height | 2.2~2.4m, typical 2.3 m |
| Working Temperature | 0℃~40℃ |
| Humidity | max. 95% RH |
| Size | 112 x 66 x 45 mm |
| Weight (w/o battery) | about 90 g |
