Parking Guidence LED Display

Description

Parking Guidence LED Display

Product Name: Parking Guidance LED Display in BD

LED display plays a important role in the Parking Guiding System. Outdoor LED Display installed at entrances shows drivers quantity of vacant spaces in the entire garage; Indoor LED Display installed at intersections shows quantity of vacant spaces in each area and floor and guides drivers the right direction to quickly find an available parking space. By using different color LED modules such as Red/Green, Red/Blue etc, it differentiate parking types easily, thus drivers can easily find different types of parking space they need, such as Standard, Disabled etc.

LED Display is composed of the listed items:

1. LED Module: a group of aligned small LEDs on which info. (number, arrow etc.) Can be displayed
2. LED Controller: drive LED module to display pre-programmed info
3. Power Transformer: provide DC5V power supply for the LED Display
4. Connection Board: eliminate DC24V carried by CAT 5 from NCU/Sensor
5. Housing: iron case to assemble all necessary parts of the LED display
6. Front Panel: transparent acrylic/PC board with painted signs (icon, text etc.)
7. LED Strip: light up the paintings on the front panel

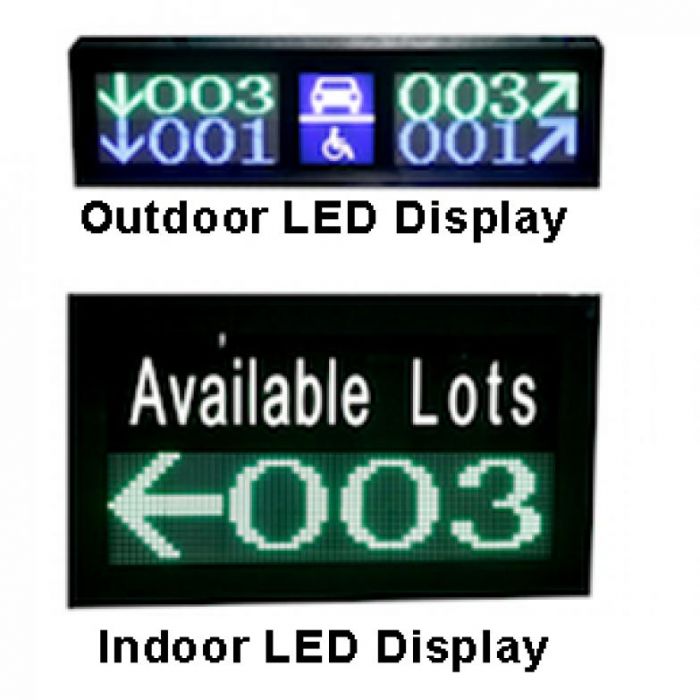

 Parking Guigence LED Display indoor

Parking Guigence LED Display Outdoor

Parking Guigence LED Display Layout
