P8 LED Display

Description

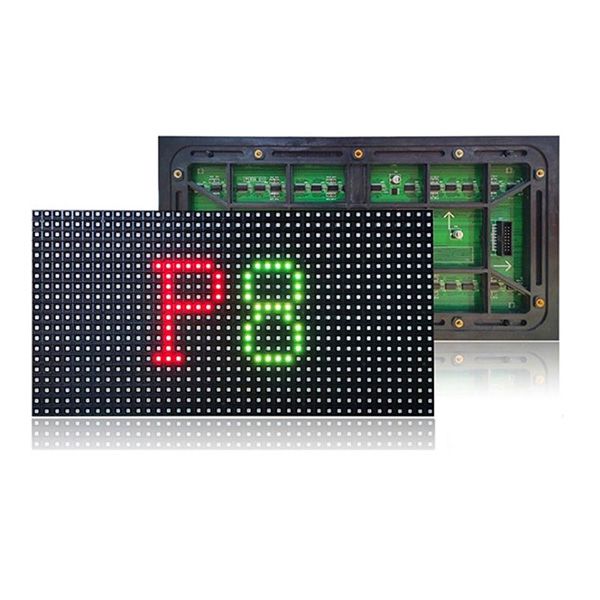

P8 LED Display

P8 LED display have emerged as a transformative technology, offering unparalleled clarity, brightness, and versatility. As businesses and organizations seek innovative ways to capture audience attention and convey messages effectively, P8 LED Screen stand out as a premier choice. These displays are characterized by their 8mm pixel pitch, which ensures high-resolution images and videos, making them ideal for both indoor and outdoor applications. P8 LED Display Price in Bangladesh start from BDT 5,000 – BDT 30,000 but the price vary on product quality and quantity.

P8 LED Display Module Specification
LED Lamp Specification

Color

Package

Intensity

Viewing angle

Wavelength

Testing condition

Red

3 IN 1 SMD

70-100mcd

140°/120°

620-625nm

25℃,20mA

Green

120-200mcd

140°/120°

515-530nm

25℃,10mA

Blue

30-40mcd

140°/120°

465-475nm

25℃,5mA

Module Parameter

Pixel Pitch

P8mm

Pixel Strcture

3 IN 1 SMD

Pixel Density

15625pixels/㎡(real pixel)

Module Resolution

40pixel(L) * 20pixel(H)

Module Dimension

320mm(W) * 160mm (H) * 15mm(D)

Cabinet Dimension

320*160mm

Cabinet Weight

.5 (kg)

Single Point Brightness, Chroma Correction: Support

White Balance Brightness

≥4500 cd/㎡

Viewing Angle

140°(Horizontal)； 120°(Vertical)

Best Viewing Distance

≥16+m

Color Tempareture

2000K-12500K (adjustable)

Display Color

68.7 Billion Color

Brightness Uniformity

≥97%

Contrast Ratio

≥5000:1

Process Performance

Single Processing bits

16bits*3

Gray Scale

12-16Bit

Control Distance

Cable:100m, Optical Fiber:10KM

Drive Mode

Constant current source driver

Frame rate

≥60Hz

Refress rate

1920-3840Hz

Way to control

Synchronize

Brightness adjustment range

0-100 Stepless

Brightness Correction

Pixel by pixel, module by module, cabinet by cabinet

User Paramiter

Working Temperature

-20～+50 ºC

Stored Temperature

-30～+60 ºC

Working Humidity

10%～80% RH

Lifetime

100,000 hours

MTBF

5000 hours

Continuous Working Time

≥72 hours

IP Protection Grade

IP65

Out of Control Pixel Rate

≤0.01%

Electricity Parameter

Operating Voltage

DC 4.5-5V

Power Requirements

AC 220 x (1±10%)V, 50x(1±10%)Hz

Max. Power Consume

850w/m2

Average Power Consume

300w/m2

Key Features of P8 LED Display

High-Resolution and Clarity: The P8 LED display is renowned for its high resolution, providing sharp and vibrant visuals. The 8mm pixel pitch means that the distance between each pixel is only 8mm, resulting in a dense pixel configuration that delivers crystal-clear images even at close viewing distances. This makes displays perfect for settings where detail and clarity are paramount, such as advertising billboards, control rooms, and corporate presentations.

Brightness and Visibility: One of the standout features of P8 LED display is their exceptional brightness levels. These displays are designed to perform optimally in various lighting conditions, ensuring that the content remains visible and impactful even in direct sunlight. The high brightness, combined with superior contrast ratios, makes P8 LED displays a preferred choice for outdoor advertising and public information displays.

Energy Efficiency: P8 LED displays are not only powerful but also energy-efficient. Advances in LED technology have led to displays that consume less power while delivering brighter and more vibrant visuals. This energy efficiency translates to lower operating costs and a reduced carbon footprint, making an environmentally friendly option for businesses and organizations.

Applications of P8 LED Display

Advertising and Marketing: In the competitive world of advertising, capturing and retaining audience attention is crucial. P8 LED displays offer an edge with their high-definition visuals and dynamic content capabilities. Whether it’s a bustling city center or a busy shopping mall, P8 LED displays can showcase advertisements that are visually striking and engaging, driving higher brand recall and customer engagement.

Corporate and Educational Settings: For corporate presentations, conferences, and educational environments, P8 LED displays provide a professional and impactful medium for communication. The high resolution ensures that every detail of the presentation is conveyed clearly, enhancing understanding and retention. Additionally, the ability to display dynamic content, including videos and animations, makes display a versatile tool for interactive learning and engaging presentations.

Entertainment and Events:The entertainment industry has also embraced P8 LED displays for their ability to create immersive and captivating experiences. From concerts and theater productions to sports events, display provide large-scale visuals that enhance the overall spectator experience. Their ability to display live feeds, animations, and special effects makes them an indispensable part of modern event production.

Technical Specifications of P8 LED Display

Pixel Density and Resolution: The pixel density of a P8 LED display is a key determinant of its visual quality. With a pixel pitch of 8mm, these displays offer a high pixel density, resulting in a resolution that can exceed 1000 pixels per square meter. This high pixel density ensures that even large displays deliver sharp and detailed images.

Refresh Rate and Color Accuracy: P8 LED display is designed with high refresh rates, typically ranging from 960Hz to 3840Hz. This high refresh rate ensures smooth and flicker-free visuals, which is essential for displaying video content and animations. Additionally, display offer excellent color accuracy, with a wide color gamut that ensures vibrant and true-to-life colors.

Durability and Longevity: Durability is a critical factor for any display technology and P8 LED display is built to last. They are designed to withstand various environmental conditions, including extreme temperatures and humidity. The robust construction and high-quality materials used display ensure a long operational life, making them a cost-effective investment for businesses.

Advantages of P8 LED Display Over Traditional Displays

Superior Image Quality: Compared to traditional display technologies such as LCD and projection systems, P8 LED display offer superior image quality. The high resolution and brightness levels ensure that the visuals are not only sharp and clear but also visible from greater distances and in varying lighting conditions.

Scalability and Flexibility: P8 LED display is highly scalable and flexible, allowing for custom configurations and sizes. This scalability makes them suitable for a wide range of applications, from small indoor displays to large outdoor billboards. The modular design of LED display also facilitates easy maintenance and upgrades, ensuring that the display can adapt to changing needs and technologies.

Cost-Effectiveness: While the initial investment in P8 LED display may be higher compared to traditional displays, the long-term benefits and cost savings are significant. The energy efficiency, durability, and low maintenance requirements of displays result in lower operating costs over their lifespan. Additionally, the high impact and engagement potential of P5 LED displays can drive higher returns on investment for businesses.

P8 LED Display Price in Bangladesh
Small Indoor Displays (Up to 100 inches): For small indoor display price range start from BDT 5,000 to BDT 7,000. These screens are commonly used in corporate settings, retail environments, and small event venues.

Medium-sized Displays (100 to 300 inches): Medium-sized display is suitable for larger indoor spaces and some outdoor applications. Prices for these displays typically range from BDT 8,000 to BDT 10,000.

Large Outdoor Displays (Above 300 inches): Large outdoor display which is often used for advertising and public information displays, can range from BDT 10,000 to BDT 12,000 or more, depending on the specific requirements and features.

Where to Buy P8 LED Displays in Bangladesh
Authorized Dealers: Purchasing from authorized dealers ensures that you get genuine products with warranties and after-sales support. Some well-known dealers in Bangladesh include:

GCTL Technologies Ltd.

VARITO

GCTL LED

Conclusion

The P8 LED display represents a significant advancement in display technology, offering unparalleled visual quality, versatility, and energy efficiency. Whether for advertising, corporate communication, or entertainment, display provide a powerful and impactful medium for engaging audiences and conveying messages effectively. As businesses continue to seek innovative ways to stand out and capture attention, the P4 LED display stands out as a premier choice for high-resolution, dynamic and cost-effective visual communication.
