Optical Turnstile Auto Flap Barrier Gate

Art.Nr.:

AOTB-137

Call for Price

Short Details:

Country of Origin: Germany
Brand Name: Varito
Certification: CE; FCC; ISO
Model Number:
Material: SUS304 Stainless Steel
Dimension: 1635x280x1005mm
Passage Width: 550mm
Usage: Office, Residential Comnunity, Museum, Gym, Ect.
Weight: Single Core Turnsitle 72kg/dual Core Turnstile 87kg
Payment & Shipping Terms

Description

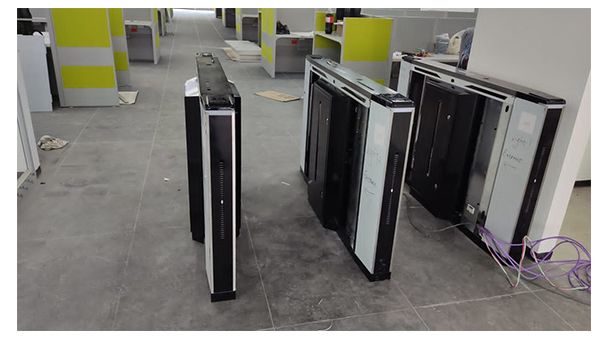

Optical Turnstile Auto Flap Barrier Gate

Product Description

The turnstile gate from the Sirius series is one of HPT Technologies’ most modern and appealing products. Model AG-TX28161502 of this series is a high-end flap barrier gate. In comparison to conventional flap barrier turnstiles, the HPT Sirius flap barrier gate has a longer, thinner body, giving it a more delicate and modern appearance. The incorporation of colorful LEDs in the flap barrier gate turnstile provides a clear status signal and enhances the aesthetic attractiveness of the gate day and night. The surface of the turnstile gate has a variety of distinct color schemes, which complicates the design. It is innovative, avant-garde, and gorgeous.

Product Size 1600*300*980mm
Material SUS 304 stainless steel
Thickness Top:1.2mm+body1.2mm
Passage Direction Single directional/Bi-directional
Standard Channel Width 550mm
Sensor 4 pairs of active infrared intrusion detector
Throughput Rate 30~35p/m
Reaction Time 0.2S
Driving Voltage DC24V 4.2A
Working Temperature ·-20~+70℃
Power Input AC110~220V±10%
Motor Brushless DC Motor
Mechanism Full Height Flap Gate Mechanism
Back up power Supercapacitor(12V/3A)
Acoustic Alarm Buzzer Alarm
LED Triple Color LED

Functionality:
1. When opened, the flap barrier gate checks for faults and sounds an alert siren if any are discovered.
2. The operational condition of the flap gate can be predetermined at the main control panel.
3. A stop-pinching feature is available. To protect both the passengers and the gate itself, the gate will automatically open once the turnstile arms are about to close.
4. There is an audible and visible alarm on the flap barrier turnstile gate. The gate’s LED is blue when it is in standby mode. Green light emanates from it as someone steps on it. It flashes red when someone tries to utilize the gate route without authorization. The buzzer on the gate beeps to warn people of the authorization violation.
5. The gate also has “Anti-Collision” technology, which enables the driving motor to halt and try to protect itself if something rams into it too forcefully.
6. A number of channels are used to synchronize the data from the turnstiles.
7. The system will automatically revoke the visitor’s access permission if they do not pass within the specified period, and it will by default return to the “waiting for open” status after 6 seconds. The “waiting duration” parameter lets users choose how long they want to hold out before the gate reopens.
8. The turnstile will automatically open and close each time the power is turned on and off.
9. It can be connected to various readers, such as those that use facial recognition, fingerprint recognition, and RFID technology.
10. A walkway could be one way or two ways in order to restrict access for entry and exit.
