Description

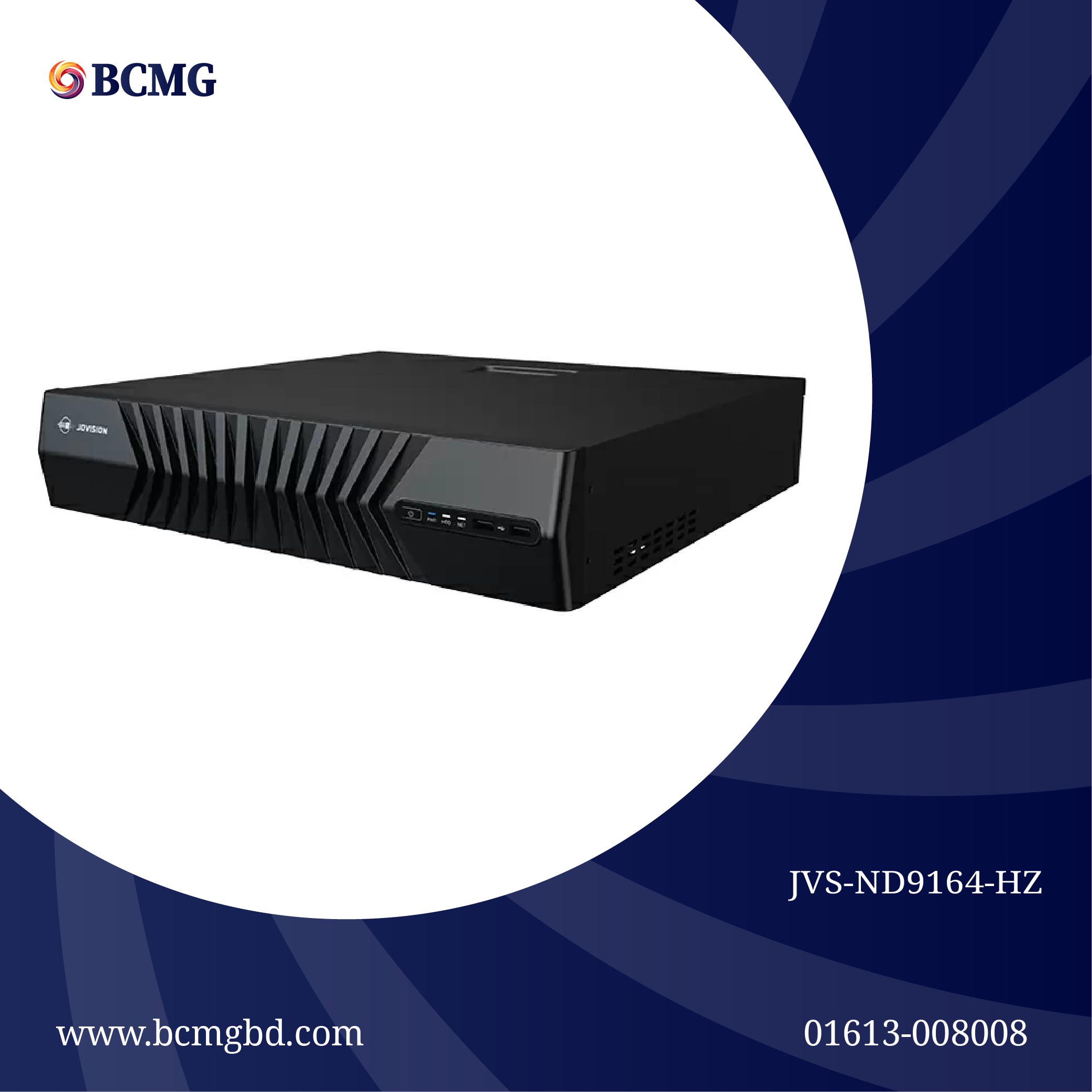

| Model | JVS-ND9164-HZ |
| Video & Audio | |
| IP Camera Input | 64 Channel |
| Audio Input/ Output | 1 Channel RCA Output, 1 Channel RCA Input64 Channel Audio output through HDMI |
| Bandwidth I/O | 400Mbps/320Mbps |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Video Output | HDMI: 3840×2160/ 2560×1440/ 1920×1080/ 1440×900/ 1280×1024/ 1280×720/ 1024×768 |
| VGA: 1920×1080/ 1440×900/ 1280×1024/ 1280×720/ 1024×768 | |
| Max Decoding | 4K/5.0MP/ 4.0MP/ 1080P/ 960P/ 720P 30fps |
| Multi-Screen Display | 1/ 4/ 5/ 6 up to 64 |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 4K/5.0MP/ 4.0MP/ 1080P/ 960P/ 720P |
| Record Mode | Manual, Schedule, Motion Detection |
| Video Detection & Alarm | |
| Trigger Events | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Alarm-In & Out | 16CH Alarm Input; 4CH Alarm Output |
| Playback & Backup | |
| Sync Playback | 4CH 4K/9CH 5.0MP/ 11CH 4.0MP/ 13CH 3.0MP/16CH 2.0MP |
| Search Mode | Channel Number / Recording Type / Date |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32/ NTFS/ exFAT USB Device / Network |
| Network & Interfaces | |
| Network Interface | 2x RJ45 (10/100/1000Mbps) |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE |
| Smart Phone | Support iOS, Android App |
| Interoperability | ONVIF 2.4 |
| PTZ Interface | RS485 |
| Storage | |
| SATA | 8 SATA Interface |
| Capacity | Up to 10TB |
| USB | 2x USB2.0, 1x USB3.0 |
| General | |
| Power Supply | ATX |
| Consumption | ≤30 W (Without HDD) |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 445×90.5x430mm |
| Weight | ≤ 8Kg (Without HDD) |
