| Model |

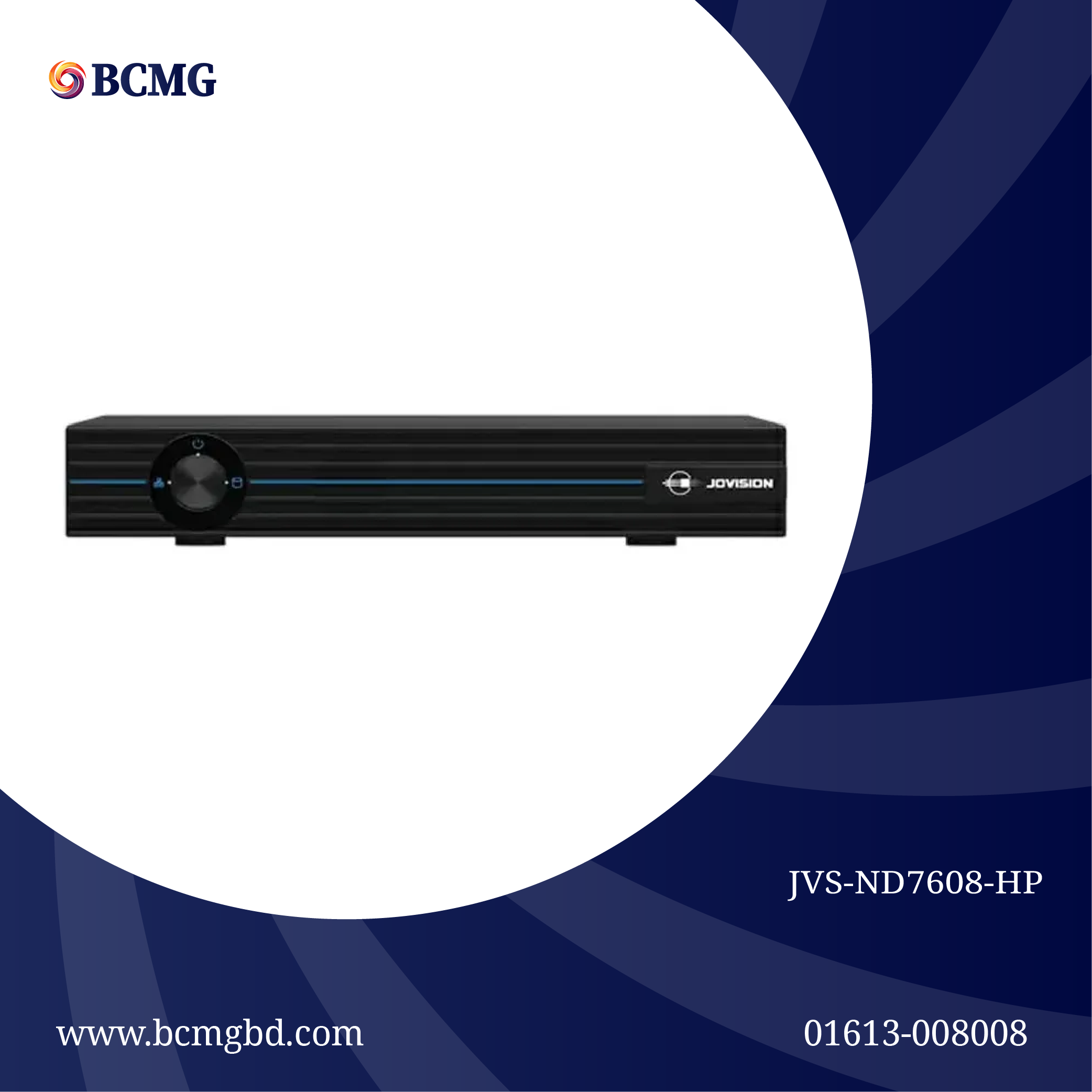

JVS-ND7608-HP |
| Video and Audio |
| IP Camera Input |
8Channel |
| Audio Input/ Output |
IPC Audio input/Audio output through HDMI |
| Built-in Speaker |
Support |
| Display |
| Interface |
1 HDMI, 1 VGA |
| Resolution |
HDMI:3840×2160@30Hz/2560×1440@30Hz/1920×1080/1440×900/1280×1024/1280×720/1024×768 |
| VGA: 1920×1080,1440×900,1280×1024,1280×720,1024×768 |
| Max Decoding |
1CH 4K 15fps;8CH@ 5.0MP/4.0MP/1080P/960P/720P 25fps |
| Multi-screen Display |
1/4/5/6/7/8/9 |
| OSD |
Camera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number |
| Recording |
| Compression |
H.265/H.264 |
| Resolution |
1CH 4K;8CH 5.0MP/4.0MP/1080P/960P/720P |
| Record Mode |
Manual, Schedule, MD |
| Video Detection and Alarm |
| Trigger Events |
Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection |
Motion Detection, No Video Detection |
| Playback and Backup |
| Sync Playback |
1CH 4K,1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080P |
| Search Mode |
Channel number / recording type / date |
| Playback Function |
Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode |
FAT32 USB Device/Network |
| Network |
| Interface |
1 RJ-45 port (10/100Mbps) |
| Network Function |
TCP/IP, DHCP, UDP, SMTP, NTP |
| Smart Phone |
iPhone, Android |
| Interoperability |
ONVIF 2.4 |
| Storage |
| SATA |
1 SATA interfaces |
| Capacity |
up to 10TB |
| General |
| Power Supply |
DC 12V |
| Consumption |
≤ 10 W (Without HDD) |
| Working Temperature |
-100C~ 550C |
| Working Humidity |
10 % ~ 90 % |
| Dimensions |
260X47.5X225mm |
| Weight |
≤ 1.0kg (Without HDD) |
