| Model |

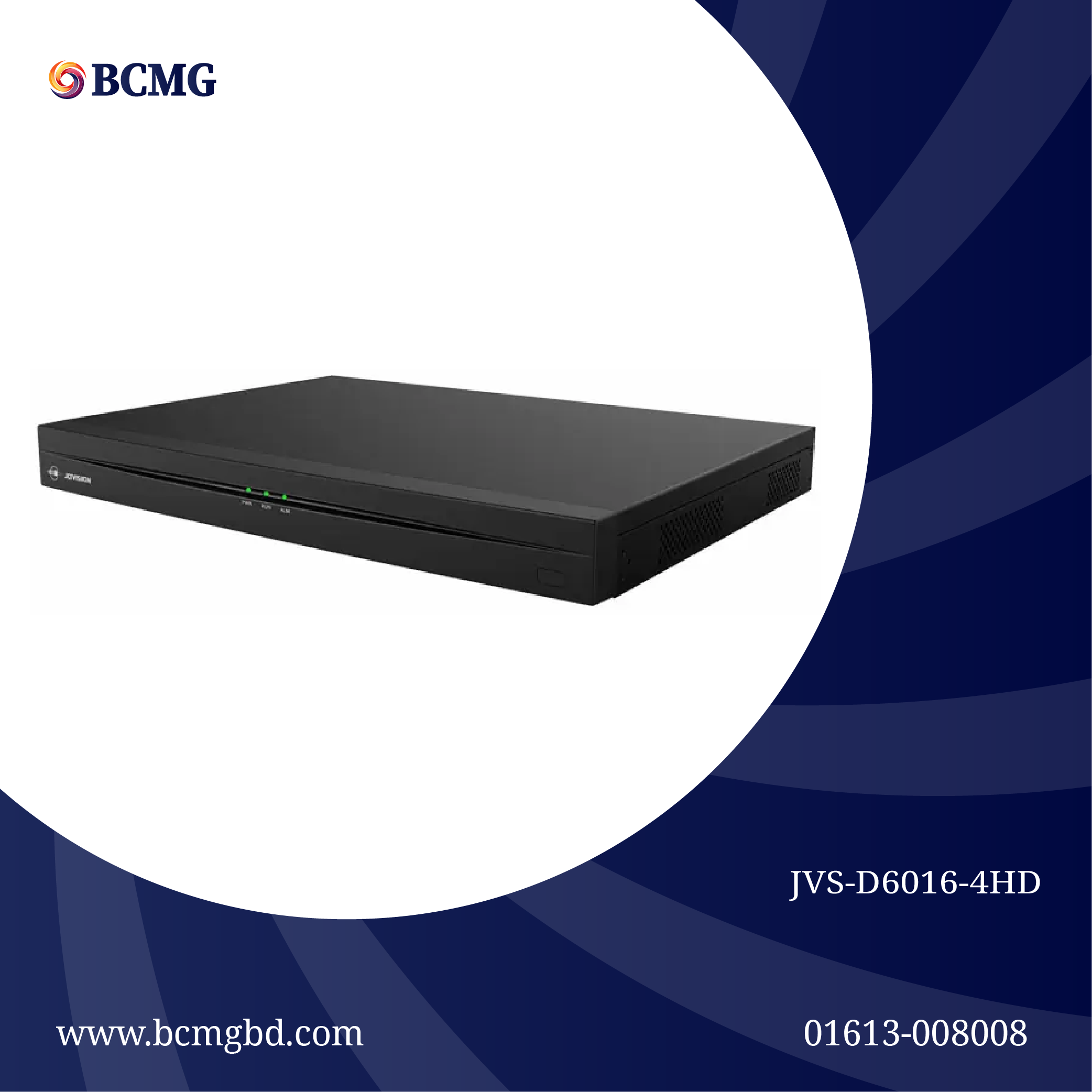

JVS-D6016-4HD |
| Hardware |
| Decoding Ability |
8CH 5.0MP@30fps,12CH 4.0MP@30fps, 16CH 1080P@30fps |
| Video Output |
4x HDMI. Support 4K Output |
| Ethernet |
1x RJ-45,10/100/1000Mbps Adaptive |
| Features |
| TV Wall Configuration and Management |
Support remote configuration and management of the video wall through the client.Screen position detection, display output number;Support search decoder. |
| Live Video Wall |
Support |
| Video Wall Playback |
Support |
| Video Wall Sequence |
Support set the sequence according to the plan |
| PTZ Control |
Support |
| Window Splicing |
Support. Maximum support 4 or more screens arbitrary splicing. After splicing, it supports split screen. Number of split screen is as follows: 1/4/6/8/9/16 |
| Window Roaming |
Support.. Support up to one window |
| Window Zoom |
Window Zoom |
| Video Compression |
H.265/H.264/ MPEG4/MJPEG |
| Audio Compression |
G.711 |
| Screen Split |
1/4/8/9/16 |
| Hybrid Decoding |
Support |
| RTSP Streaming |
Support RTSP Streaming From Remote Device. |
| Language |
Support English/Chinese |
| Virtual Banner |
Support. Font Size, Color, Background Can Be Set |
| Output Resolution |
Maximum Support 4K Output |
| Configuration |
Network Configuration (Modify IP), Local Upgrade, Factory Restoration |
| Device Management |
Support Device Search (Protocol Support 1.0, 2.0 ONVIF), Add, Delete, Group |
| Software Projection |
Support |
| Hardware Projection |
Support |
| Scene Management |
Support. Save the Scene For Easy Use |
| Set Background |
Support. |
| Access Protocol |
CloudSEE Private Protocol/ ONVIF Protocol, Support ONVIF IPC/NVR Access |
| General |
| Power Supply |
DC 12V |
| Consumption |
≤18 W |
| Working Temperature |
-10°C ~ 55°C |
| Working Humidity |
10% ~ 90% |
| Dimensions |
445x45x325(mm) |
| Weight |
≤3.13Kg |
