Description
home magament gateway

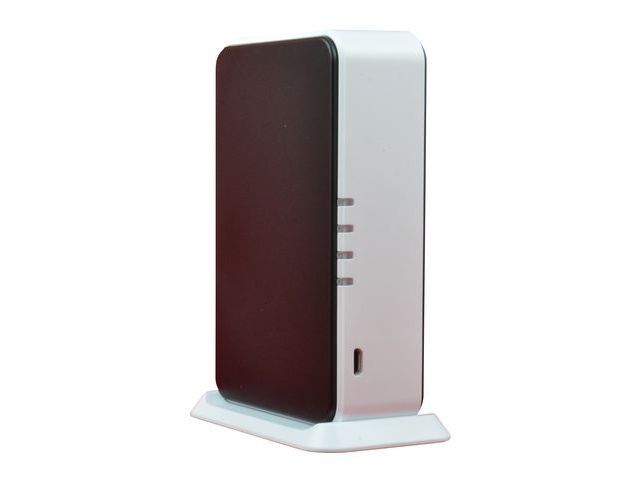

ls 10 home magament gateway
| Input Power | 7V DC/850mA power adapter |
| Standby Current | About 280mA |
| Transmission RF | 433MHz, 868MHz or 915MHz, compliant with local regulations |
| RF Data Modulation | OOK (On Off Key). |
| Transmit RF Power | less than 10mW. |
| Range | about 100m to 300m + @open field, 25℃ (Depends on sensor). |
| RF Receiver Type | super heterodyne. |
| RF Security Code | 16,777,216 combinations with check sum for each type of sensors. Over 4 billion combinations in total. |
| Communication Link | Ethernet or wifi |
| Event Log: Max | 512 records. |
| Display | 4 LEDs (Away/Home/Disarm/Data). |
| Sensor Zones | total 288 zones. (Burglar zones x 128, Fire zones x 64, Controller zones x 32, Medical zones x 32, Special sensor zones x 32) |
| Memory Back-up | CR 2032 Li battery, back-up time minimum 1 year for a new battery without power. |
| Back Up Battery Connector | 5V USB power pack (excluding) |
| Delay Activation Time | 0- 255 seconds programmable. |
| Digital Interfaces | Micro USB socket (None for LS-10N) |
| Internet Interface | RJ45, or wifi. |
| Automation Switch control | RJ11 6-pin for X-10 switches and XRM-01 Relay Modules. RF wireless power switch. |
| Internet CMS protocol | Proprietary Scientech Protocol (ST-I, ST-II), CSV and SIA ADM-CID (2007) IP Alarm protocol. |
| Wire Sensor Input | One input, can be assigned for Panic, Burglar, Fire, Medical, Tamper or Controller usage. |
| Alarm Out | Open collector transistor output with 5.1Ω in series (max 200mA). For 6V external siren or other alarm device. |
| Clock Accuracy | within 5 seconds daily. (None for LS-10N) |
| Operation Temp. | -10℃~50℃. |
| Storage Temp. | -20℃~55℃. |
| Humidity | 10-95%RH. |
| Size | 118x78x32 mm.(Main body) |
| Weight | about 108 g. (Main body) |
