Description
Handheld Selective Inductive Mine Detector
NR-MD is designed for detection of suspicious items with metallic housing and components that are positioned on the ground surface, embedded in soil, snow or water as well as under the pavement.
ADVANTAGES:
√ searching items classification is available on the basis of physical dimensions and sort of metal (ferrous – non-ferrous)
√ technical parameters can be adjusted by an operator for searching mode optimization: the device sensitivity and selectivity
√ the standard software supports:
– data export to PC coupled to the device;
– operational parameters modification to fit a certain specific task (searching for metallic items with set-up parameters);
– non-standard coils matching with the device working parameters (from third-party supplier or various home advanced models).

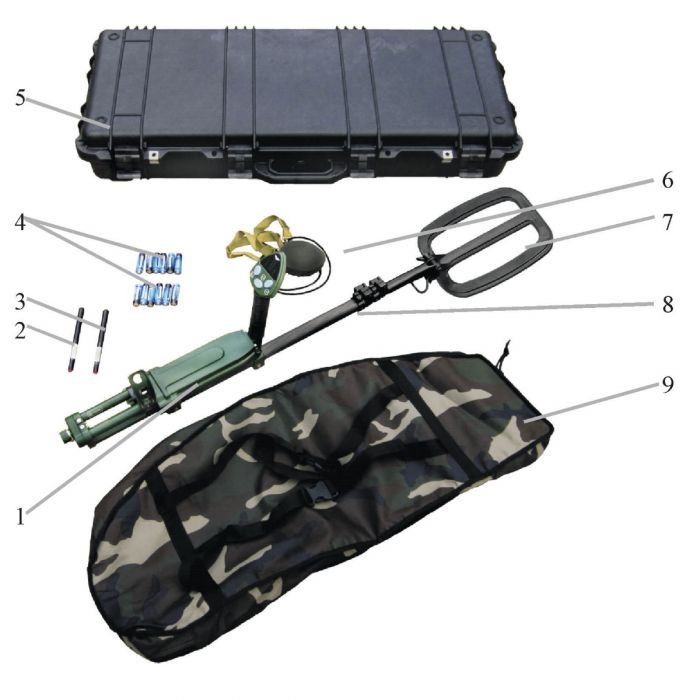

Delivery set:
1. Main unit;
2. Test probe No1;
3. Test probe No.2;
4. Batteries;
5. carrying case;
6. Headphones;
7. Detection element and the spiral cable;
8. Telescopic rod;
9. Carrying bag.
Technical characteristics: | |
| Type of alarm | sound and lighting |
| Battery | battery type size LR-20 (AA) |
| Supply voltage | 4,5…9,0 |
| Current, mA, max – without light indication – with light indication | 140 150…240 |
| Setup time | not more than 3 min. |
| Time of preparation for the use after power up | not more than 10 min. |
| Pace of search, m2/h | up to 300 |
| Continuous operation without having to replace the power supply in normal climatic conditions | at least 8h |
| Terms of use: – operating temperature, ºC – relative humidity, % | -30º to +50º 95±3 (temperature (+35±2ºC)) |
| Weight: | |
| – in the operating position | 2.2 kg |
| – in the carrying bag | 3.3 kg |
| – in the carrying case | 11.7 kg |
