Full Height Turnstile Gate with RFID Access Control System

Description

Full Height Turnstile Gate with RFID Access Control System

Full Height Turnstiles Security Gates in Bangladesh

GCTL full height security turnstiles are designed to control pedestrians entering or exiting restricted areas where there is high -volume pedestrian access and high security control is required. This turnstile can be used for bi-directional pedestrian access control applications. The turnstile has been designed as a modular system and can easily be assembled on site by hand and without the need of heavy lifting devices.

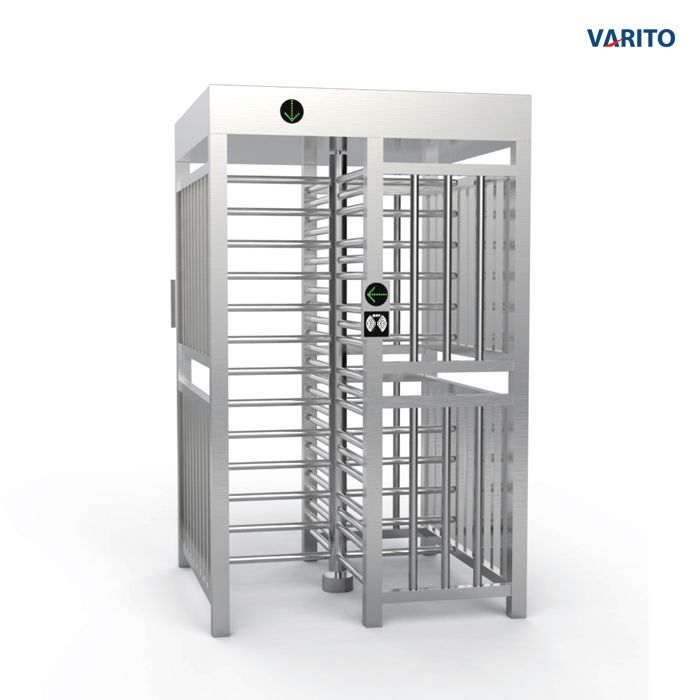

The turnstile consists of an outer cage section and a center column incorporating a 3 x 120° offset ‘U’ bar configuration. The Controller and the torque positioning drive is mounted on top of the cage and within a sheet metal enclosure. Additional space has also been made available for the installation of access control equipment. The turnstile is designed to be installed directly to concrete surfaces, or in the case of paved areas an optional foundation frame is available. GCTL turnstile gate is available in dual and single lane models, turnstile gate’s sturdy structure and design, make it a sure deterrent.

We Provide:

Dual Lane Full Height Turnstile Gates
Single Lane Full Height Turnstile Gates

Full Height Turnstile Safety Features:

• All Smooth finish. No expose screws or fasteners.
• Bi-directional passage
• Electrical controls for both directions
• Secure Supports Anti-tailgating.
• Integration with any identification or access control system.
• Automatic reset of barrier wings after each passage
• Push button switch override controls for emergency situations
• Cable or wireless remote control
• High quality electrical Components.
• Patented oil lubrication system reduces need for maintenance.
• Indoor and outdoor application
• Heavy-duty high precision mechanism Nickel Plated for high corrosion resistance
• Mechanism designed not to lock at 45°
• Modular assembly provides for moving turnstiles in through confined routes for final installation
• Easy access to electronic control modules
• Modular plug-in electronics provides for easy and quick repairs
• Programmable electronic selections i.e. Auto relock after a predetermined time if no action is detected
• Power failure options-unit remains locked or unlocked during power fail mode
• On board counter unit standard-retrievable by hand held module
• Remote mounting of control electronics possible
• Alloy steel tripod bub and SUS304 stainless steel casework & tripod arms ensure long-lasting durability.
• A Self centering mechanism to ensure complete rotation of the head to the rest position
• An anti-backup device prevents reverse rotation once the head has moved 30 degree from its rest position
• A hydraulic damper to ensure smooth a quiet operation
• Ergonomic design makes card and fingerprint Authentication &simple for users.
• Parameter


  Power requirements		AC 100 ~ 120V/200 ~ 240V, 50/60Hz
  Working temperature		-28 °C – 60 °C
  Working humidity		0%-95%
  Working environment		Indoor/Outdoor (if sheltered)
  Speed of throughput	RFID	Maximum 30/minute
  	Fingerprint	Maximum 25/minute
  	Face	Maximum 15/minute
  	Vein	Maximum 15/minute
  Lane width(mm)		580
  Footprint(mm*mm)		1400*1395
  Dimension(mm)		L=1400, W=1395, H=2220
  Dimension with packing(mm)		1975*1085*935 & 2100*1435*735
  LED indicator		Y
  Cabinet material		SUS304 Stainless Steel
  Barrier material		SUS304 Stainless Steel
  Barrier movement		Rotating
  Emergency mode		Y
  Security level		High
  MCBF		2 million
  Ingress protection		IP54
