Data Collector for Smart Parking Management System Long Range Parking

Description

Data Collector for Smart Parking Management System Long Range Parking

The Parking Guidance System is an effective way to figure out the Parking problem and help driver to find their exact parking space quickly. Now days it’s very needy thing for Bangladesh, Germany Computer And Telecom Limited is a leading Importer and solution provider for Vehicle Access Control System (Parking Management System, Parking Guidance System, Barrier Gate, Parking Lock), and authorized agent for Security System in Bangladesh.

Parking Guidance System Working Principle : Ultrasonic Sensor and Extended bay indicator are installing to each parking space to detect /indicate presence of Vehicle, The information is picked up by data collector .Processed by center processor. And then released to LED display .By tell driver availability information before they entry to the parking lots. It is suitable for Bangladeshi environment. GCTL Provide all types of Parking Guidance System Everywhere in Bangladesh.

Parking Guidance System Accessories: Ultrasonic Sensor, Bay Indicator, Centre Processor, Sector Display, General Display, Management Software

Ultrasonic Sensor: Ultrasonic detection unit install right over middle of parking space to monitor presence of vehicle and provides real-time information to PGS system.

Bay LED Indicator: High brightness LED indicator controlled by Ultrasonic sensor to tell occupancy status of each parking space by different color illumination Red Color indicates space occupied. Green Color indicates available, Blue indicates the space is special for disable. Data Collector serves as a bridge commenting center processor to Ultrasonic sensors and LED Display. It picks up sensor information and transfers to center processor and also helps to transfer availability information from center processor to LED Display

Centre Processor (Data Collector): It is one of SEWO PGS system which deals with data processing. Information storage and release One Centre process can manage 60pcs data collectors (3.600 sensors)

Sector Display: Sector Display at corners & intersection tells which direction to take in order to fine one, Color modules such as Red. Greet .Blue are used to differentiate parking types and lead drivers to the right places

General Display: First component greeting drivers at the car parking equipped with SEWO PGS. General LED Display at entrances tells how many spaces are available in each floor.

Management Software: Multi-language graphical application developed based on Windows7 and SQL database software with intuitive UI Simplified operation & complete functions.

Data Collector for Smart Parking Management System Long Range Parking Layout Diagram:

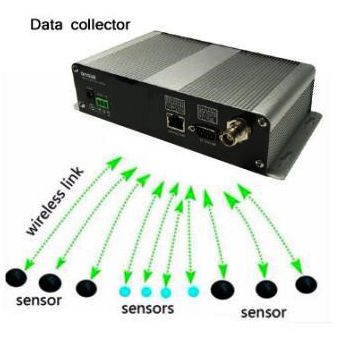

GCTL Provided Data Collector: Data Collector works as a bridge which connects Centre Processor to Ultrasonic Sensors & LED Display. It collects and transfers sensor information to Centre Processor for final processing, and also transfers availability information from Centre Processor to LED Displays. A Data Collector manages up to 60 nos. Ultrasonic Sensors and 20 nos. LED displays
