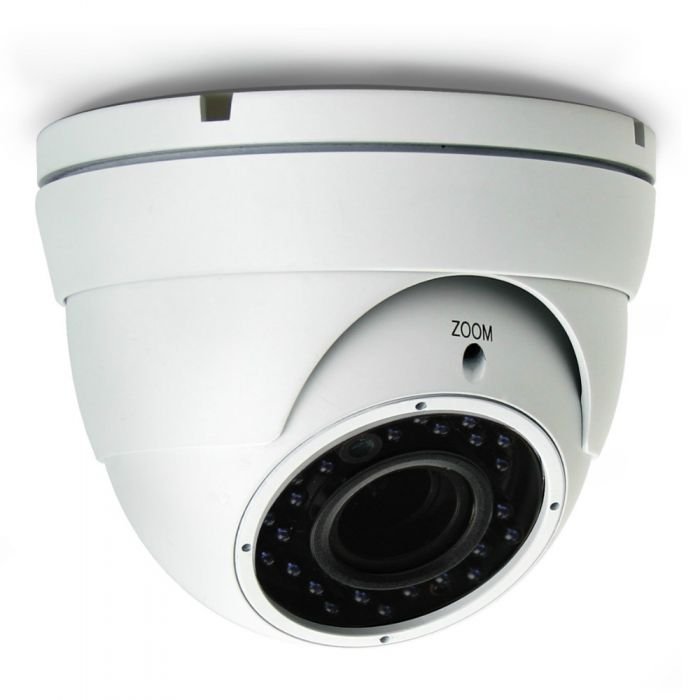

AVTECH DG206B Dome CCTV Camera company in Bangladesh

Description

Technical Specifications:

• MODEL DG206B
• Pick-up Element 1/ 2.7” CMOS image sensor
• Number of Pixels 1930(H) x 1088(V)
• Video Frame Rate 1080P@30fps / 1080P@25fps
• Min. Illumination 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
• S/N Ratio More than 48dB (AGC OFF)
• Shutter Speed 1/30 (1/25) sec ~ 1/720000 (1/600000) sec
• Lens f2.8 ~ 12mm / F1.4 ~ F2.8
• Lens Angle Wide: 104° (Horizontal) / 56° (Vertical) / 124° (Diagonal)
• Tele: 35° (Horizontal) / 20° (Vertical) / 40° (Diagonal)
• IR LED 24 units
• IR Effective Distance Up to 20 meters
• IR Shift YES
• Day & Night Mode YES
• IRIS Mode AES
• White Balance AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K
• AGC Adjustable
• Sharpness Adjustable
• Flickerless 50HZ / 60HZ / OFF
• BLC Adjustable
• IP Rating IP66
• Operating Temperature -20℃ ~ 40℃
• Operating Humidity Less than 60% relative humidity
• Power Source (±10%) DC12V / 0.5A
• Current Consumption (±10%) 180mA (IR OFF) / 400mA (IR ON)
• Net Weight (Kg) 0.648
