Description

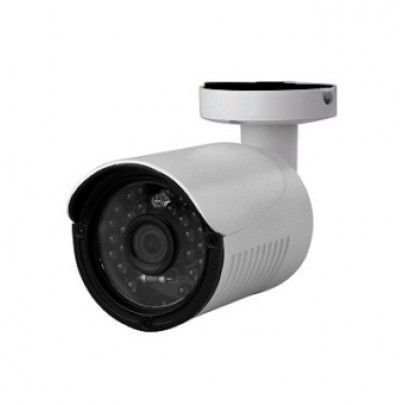

| MODEL | AVT1105T |
| Image sensor | 1 / 2.7 “CMOS image sensor |
| Number of pixels | 1930 (H) x 1088 (V) |
| Video frame rate | |
| Minimum Sensitivity | 0.1 Lux / F1.8,0 Lux (IR LED ON) |
| System S / N | More than 48dB (AGCOFF) |
| Shutter speed | 1/30 (1/25) sec ~ 1/720000 (1/600000) sec |
| Lens | f3.6mm / F1.8 |
| Angle Lens | 89 ° (H) / 46 ° (V) / 108 ° (diagonal) |
| Infrared lights | 24 Balls |
| IR effective distance | Up to 20m |
| IR Shift | Neck |
| Day and night mode | Neck |
| IRIS mode | AES |
| White Balance | AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K |
| AGC | Custom |
| Sharpness | Custom |
| Flickerless | 50HZ / 60HZ / OFF |
| BLC | Custom |
| Alarms (I / O) | Yes (1 in / 1 out) |
| IP Standard | IP66 |
| Operating temperature | -25 ℃ ~ 50 ℃ |
| Power Source (± 10%) | DC12V / 0.5A |
| Current capacity (± 10%) | 160mA (IR LED OFF) / 360mA (IR LED ON) |
