Description

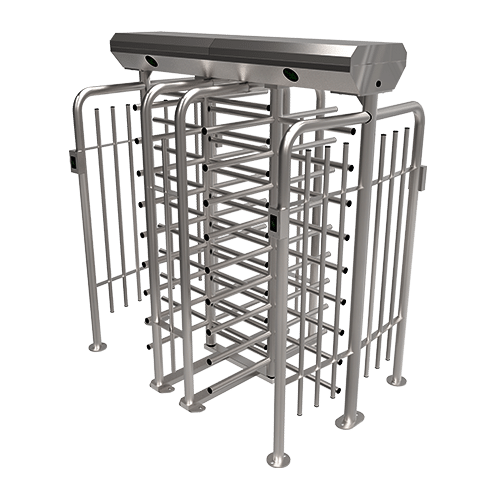

Name: Automatic Full Height Turnstile Electronic Security Gate
Product Details:
The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control for office or building which realize intelligent pedestrian control and management. The impenetrable construction eliminates any un-authorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested. And the turnstile can also work with push button, fingerprint and face recognition access control system. Full height turnstile Closed design, the whole machine is SUS304 stainless steel, the outer surface is brushed, the overall line is delicate, soft touch, more texture. In addition, the integrated movement structure makes the performance more stable, reliable and durable.
Features
Turnstiles for access control
The right combination of security, user comfort and personal safety.
- Users cannot become stuck thanks to end point locking
- Versions with integrated bicycle door, full-height gates for barrier-free access or as a goods entrance,
an emergency exit function or in resistance class WK2 - Space-saving double units
- Modular combination of bars, roofs, guiding and barrier elements
- Lasting quality for indoor and outdoor installation
- Turnstile column and bars made of robust stainless steel
- Rotating speed adapts to the pedestrian
- Low-energy drive
- Low power consumption
- Behavior in the event of a power failure can be freely determined
- Can be used in regions with harsh environmental conditions
- Integrated, parameterizable random generator
Operation Area:
Subway Station, Hover port, Tourism Spot, Exhibition, Swimming Hall, Residential Area, Enterprise’s Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control, University, Shopping Mall, Bank, Insurance, Government offices, Cinema Hall, School, College, Medical And all Types of Public Gathering place.
We Provide: –
- Full Height Turnstile.
- Full Height Turnstile with RFID Access Control System.
- Full Height Turnstile with Fingerprint and RFID Access Control System.
Parameter
Power requirements |
AC110V/220V, 50/60Hz |
|
Working temperature |
-28℃~60℃ |
|
Working humidity |
0%~95% |
|
Working environment |
Indoor/Outdoor |
|
Speed of throughput |
RFID |
Maximum 30/minute |
Fingerprint |
Maximum 25/minute |
|
Face |
Maximum 15/minute |
|
Vein |
Maximum 15/minute |
|
Lane width(mm) |
580 |
|
Footprint(mm*mm) |
2018*1324 |
|
Dimension(mm) |
L=2018 W=1324 H=2220 |
|
LED indicator |
Y |
|
Cabinet material |
SUS304 Stainless Steel |
|
Barrier material |
SUS304 Stainless Steel |
|
Barrier movement |
Rotating |
|
Emergency mode |
Y |
|
Security level |
High |
|
MCBF |
2 million |
|
Ingress protection |
IP54 |
