Description

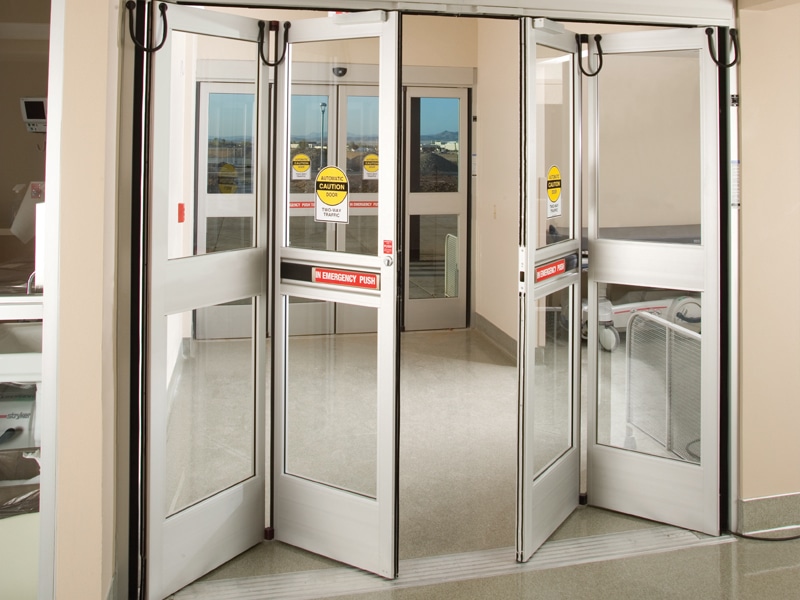

Automatic Folding Sliding Door
Where lack of space indicates that neither a sliding nor a swing door can be considered, an automatic folding door provides an ideal solution. Its particularly compact construction makes this type of door the complete space-saver which is also perfect for retro-fitting during conversions or renovations. The record folding door is ideal when space is tight but quick and easy access is necessary. This model is easily integrated into most entrances, and can be fitted both in front of an opening as well as between two side walls. The perfect solution to keep the cost of building modifications as low as possible.
Using Areas:
The record folding door is ideal for narrow passageways in restaurants, hotels, business headquarters, hospitals and old people’s homes. smaller shops, smaller companies, filling station convenience stores or buildings with narrow entrances whether in large cities or historic parts of towns.
Product Advantages:
– Suitable when space is very tight.
– Simple to install – Lowers cost of building modifications.
– Can Be used for Opening Width Less Than 1000 mm.
– Clear opening width (A) max. 2000 mm.
– Weight of door leaves max. Maximum 150 kg (4x 37.5 kg).
– Operating speed 0.7 m/s.
– Clear height of passage (G) up to 2500 mm.
– Housing and door leaves 30 mm (glass up to 20 mm).
– Surface finishes Colored or anodized Assembly options
– wall or beam assembly.
– Special: with opening widths less than 1000 mm.
| Bi-Fold Architectural Specifications (3 Part) | |
| DESIGN | 2 or 4 panel |
| BREAKOUT | All panels |
| FINISH | Clear or Dark Bronze Anodized | OPTION: Special Finishes Available |
| HEIGHT* | 2 Panel, Single Pane Glass: 7’-6” (2.3m) Minimum 8’-6” (2.6m) Maximum (Double Pane Glass Not Available) 4 Panel, Single Pane Glass: 7’-6” (2.3m) Minimum 9’-2” (2.8m) Maximum 4 Panel, Double Pane Glass: 7’-6” (2.3m) Minimum 9’-2” (2.8m) Maximum |
| WIDTH* | 2 Panel, Single Pane Glass: 4’ (1.2m) Minimum 5’-2” (1.6m) Maximum (Double Pane Glass Not Available) 4 Panel, Single Pane Glass: 6’ (1.8m) Minimum 10’ (3m) Maximum 4 Panel, Double Pane Glass: 6’ (1.8m) Minimum 8’ (2.4m) Maximum |
| TYPICAL DOOR PANEL WEIGHT | Up to 100 pounds each (45kg) |
| POWER REQUIRED | 120 VAC, 5 amps, minimum |
| DRIVE SYSTEM | STANLEY M-Force Swing Door Opener |
| CONTROLLER | High Resolution iQ Controller, Microprocessor Based, Safety Logic |
| ACTIVATION/SAFETY SENSORS | 2 motion sensors and 1 presence sensor (fold side) for safety |
| CODES AND STANDARDS | UL, cUL, ANSI/BHMA A156.10 |
Automatic Folding Doors Benefits:
Space-Saving: Where lack of space dictates that neither a sliding nor a swing door can be considered, an automatic folding door provides an ideal solution. Its particularly compact construction makes this type of door the complete space-saver which is also perfect for retro-fitting during conversions or renovations.
Folding Door Facility: Our pre-finished compact automatic folding door solution impresses as a result of its restrained and graceful appearance. The door system is supplied completely prefabricated from attractively shaped special profiles. Aluminum profiles which can neither trap nor crush limbs or people and with integrated lip seals ensure a high level of safety and guard against drafts.
Optional Areas of Use: Barrier-free construction: can be easily fitted with contact-free switches and programmed with longer opening times
Addition Functions:
Air-lock and porch function: two coordinated door systems control access or prevent the movement of air between the interior and the exterior. Building automation: integration into existing building management systems.
