Description

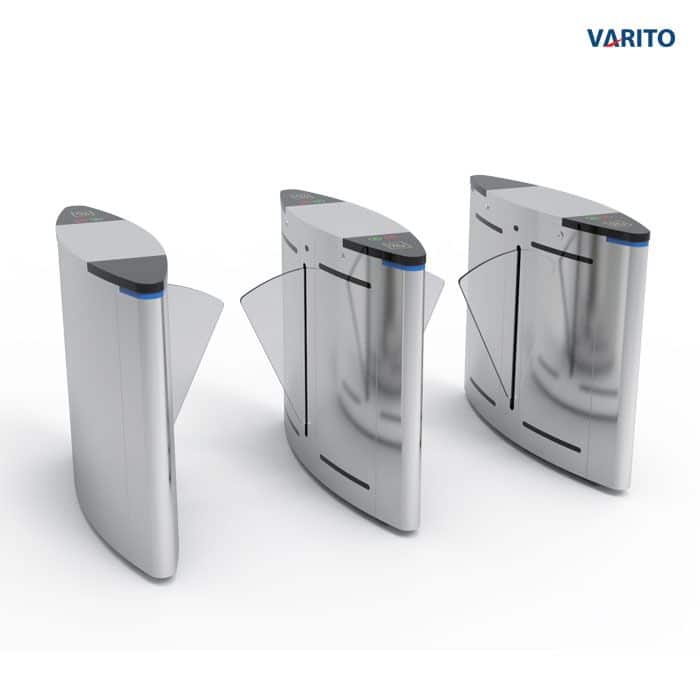

Automatic Flap Barrier Turnstile
High Speed Automatic Flap Turnstile Barrier Gate for Office Entrance:
Description:
Intelligent flap barrier is a brand-new product of VARITO company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. VARITO flap barrier has features of precise craftsmanship, comprehensive functions and high technology. It has application in high class communities, intelligent buildings, hotels, subway stations and other high-level venues.
Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.
Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.
Feature and Function
1. A compact electric and mechanical design with unique drive which ensure product durability and silent operation, and its self-lock mechanism can also well protect the access control security.
2.Varito flap barrier barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.
3.VARITO flap barrier barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the flap barrier with different system, like card reader, ticket system, token system etc.
4.VARITO flap barrier barriers have auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable. The press button 1 and button 2 can adjust the delay closing time.
5.VARITO flap barrier barriers can be integrated with fire control device, which allow the release on emergency for security consideration.
6.VARITO flap barrier barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.
8. Anti-reversing passing
9. Auto closing when power on
10. Auto open and free access when power off
11. Adjustable access directions
13. Traffic light indicating passenger access
14. Battery is needed.
Specifications
| Model | Varito -WJTY201 |
| Stretching-out flap length | 275mm |
| The max lane width | 600mm |
| Cabinet material | Cold rolled steel & aluminum alloy |
| Material of Flap Door | Organic glass |
| Housing of thickness | 1.5mm |
| Normal Life Span | 3 millions times |
| Communication Interface | Standard RS485(distance less than 1200 meters) |
| Transit speed | 30-40 persons/min |
| Time for opening or closing | 0.5s |
| Starting time after power on | 3s |
| Input interface | Dry contact signal or +12Vor pulse signal with width more than100ms DC12V |
| Transit speed | 25~32 persons/min |
| Working temperature | -10°C~50°C |
| Working environment | Indoor / Outdoor (Shelter) |
| Relative humidity | ≤95%, no condensation |
Tripod Turnstile
Tripod turnstile provides a visible fixed barrier of three stainless steel bars located at the angle of 120 ° which rotate on an inclined axis for pedestrian access control. In the event of an emergency the panic mode drops the bars, allowing unhindered free access in both directions.
Full Height Turnstile
Full-height turnstiles is another type of pedestrian barriers. Largely these security doors are used for outdoor application within project of highest security / vandal proof requirements. Herewith indoor application also can be considered.
