Automatic Cantilever Gate

Description

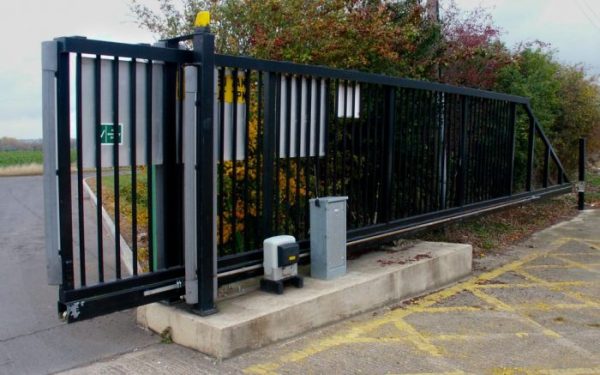

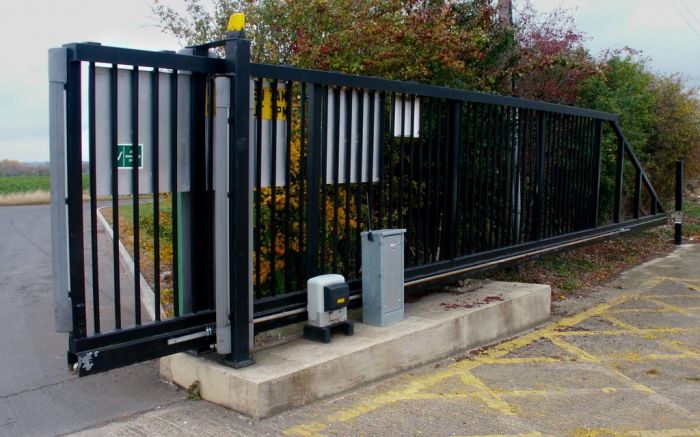

Automatic Cantilever Gate

Varito CG1000 Cantilever Sliding Gate in Bangladesh:
The Varito CG1000 Cantilever Sliding Gate is an automatic sliding gate that come in variety of widths and heights to suit site requirements.

The cantilever sliding gates are manufactured from RHS sections of sufficient strength to suit operating requirements which are dependent upon the gates opening width, height, type of infill (wind loading/weight) and the level of security required.

Key features & benefits

– Access control and intercom systems. – High quality coating system.

– Galvanized/Zinc sprayed or powder/plastic coated. – Bespoke built units.

– Manual Override facility. – Environmentally durable.

– Custom build to client specification. – Operational under power failure conditions.

– Ease of installation. – Audible alarm / Flashing beacon.

– Safety edge / Safety photocells / Laser scanners. – Serrated / barbed wire / wire toppings.

– High speed gate drive. – Pedestrian guard rail.

– Inductive loop systems. – Traffic lights & back indications systems.

– Matching infills and cladding.

Product Description
These Automatic Cantilever Sliding Gates are an ideal solution where space behind the gates is on an incline or restricted.

With fully automated action and a wide range of access control options these gates are suitable for a wide range of applications including commercial and industrial. They also offer higher security than rising arm barriers.

This automatic cantilever gate has a manual release mechanism concealed within the lockable housing unit, allowing manual control of the gate in the event of a power failure. To aid in the safety aspect of the automatic cantilevered sliding gate, the portal is fitted with dual-height photo cells and rubber profile safety edges.

BS/EN 12453 Compliant
Requires – 230v, Single Phase, 50Hz, 10 Amps
Manufactured from Hi-grade Aluminum
Operated by a programmable logic controller, operated via an inverter (allows for programming of various parameters such as gate speed, passage timeout, automatic opening times, free exit loop operating times etc.)
Proximity sensors mounted in the main portal read the moving gate leaf, indicating the start and end of the travel cycle
Towards the back of the Gate’s opening area, a floor mounted support roller supports the weight of the gate in the fully open position
Anti-climb spikes are available for gates over 1500mm high
Variety of infill options available
CE Approved
Delivered as a complete unit and lowered on to pre-installed concrete plinths – Delivery is not free please see NOTES and Terms and CONDITIONS
Tracked gates DO NOT have a cantilever end but will need an additional 1-2m roll back
How to Automatic Cantilever Gate

ADDED BENEFITS

The gates are fitted as standard a number of safety devices
The gate portal is fitted with dual height photocells and 6 Category 3 monitored live safety edges
Corporate colors available on request
Ease of installation
OPTIONAL EXTRAS

Razor Wire Extensions
Electric Fence
Anti-Climb Spikes
Traffic Lights
Warning Siren
Timber Infills
Louvre Infills
OPTIONS FOR ACCESS CONTROL

Keypad
Proximity Cards
Voice/Video Intercom Access
Token Acceptors
Remote Control Fobs
Key Switch
Loop Detectors
Warranty Information
This product comes with a 1-year warranty as standard

FEATURES OF CANTILEVER GATES:
Our line of durable cantilever gates is designed to close single openings up to 60 feet. When doubled, it will open up to 120 feet, making it a versatile solution for a wide variety of applications. Features and benefits of our cantilever gate products include:

Designed and built to order – suiting your specific project needs
Top track and top gate frame member are keyed to fully interlock with each other, then welded to form a one-piece composite structure
Stainless steel or galvanized cable cross-bracing along the entire gate length
Truck assemblies are designed for slide gate use and are tested under extreme load and weather conditions, a 5-year warranty on the W4 or S8 truck assemblies is standard
Self-aligning, sealed lubricant ball bearing wheels
Supplied with gap protectors and guide roller covers to protect against entrapment
WHAT’S THE DIFFERENCE BETWEEN A CANTILEVER GATE AND A ROLLER GATE?
Cantilever gates and roller gates are both types of slide gates. Though similar on paper, cantilever gates feature a built-in counterbalance that allows them to extend further, making them more suitable for larger openings. Cantilever gates also have an interlocked one-piece structure that has fewer maintenance requirements than conventional roller-sliding chain link gates.

While cantilever gates require more room than swing gates or vertical lift gates, they are often a unit that’s safer, more secure, more reliable and easier to use.

CAN CANTILEVER GATES BE MOTORIZED?
chain-link driveway gates can be motorized for your convenience. We can match any gate system with an automatic operator that will deliver reliable performance with low maintenance requirements. We also offer a number of access control systems that simplify entry and exit, saving your security team time and effort.

Main Features

The cantilever sliding gate adopts Aluminum 6063-T5 material with elegant appearance and compact structure.
The gate is suspension sliding without any rails, it’s very easy and simple for installation and maintenance.
Anti-Bumping Function: In process of gate closing, if infrared detector sensed people or obstacles, the sliding gate will immediately stop to assure of security.
Anti-Pinching Function: In process of gate travelling, if people or obstacles contact safety airbag, and pressure-wave sensor will transmit signal to master control board to make the gate stop sliding.
Anti-Climb-Over Alarming: If infrared detector sensed anybody to climb over gate, alarm in control cabinet will auto turn on, and the alarm can be turned off by stop-button or open-button of controller.
If any emergency happened, you can press Emergent ON/OFF button to cut off power and make the working gate stop immediately to assure of safety.
Once electric motor temperature exceeds 120 degree or the gate is working for a limited time, then the motor will auto stop working for protection and prolong its life time.
The gate is with desktop-controller and handheld-controller for remote control, and during the time of maintenance or power failure, gate clutch can be released and then the gate can be controlled manually.
The gate is with leakage protection to protect over voltage or current in control system to connect ground.
The gate works smoothly, stable and quiet with high security, low noise, low failure rate and long service time.
The gate is used to circumstances of -30°c to +70°c of high or low temperature, wind, rain, ice, snow, slope, over railway or track and even some other tough conditions.
Gate Automation System :The cantilever sliding gate is with an advanced automation system which includes our patent horizontal motor and two pieces of carriage wheel group built in the base beam (sliding track), industrial drive chain, intelligent infrared sensors, master control box and remote controllers. It’s with outstanding features of anti-bumping, anti-crushing, anti-climbing-over, working stable, low noise, thermal protection, leakage protection and so on.

Motor Power: 400W
Voltage: AC220V±10% 50Hz (AC110V by customized)
Revolution Speed: 1350r/Min
Sliding Speed: 18-20 meters per minute

Electric Capacity: 18uF/450VAC

Working Noise: Less than 65db

The Best Environment Temperature: -30°c to 70°c

Thermal Protection Temperature: 120°c
