Description

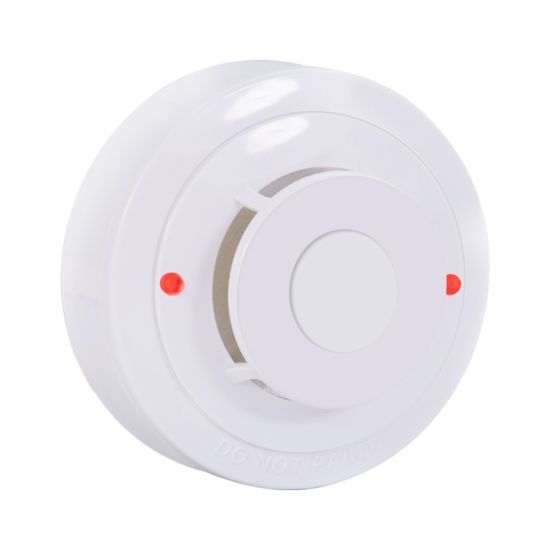

Asenware Conventional Heat Detector
Brand : ASENWARE
Model : AW-CTD321
Country of Origin: UK
Description :
AW-CTD321 is photo-electronic detector using a state-of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel.
Technical Specification:
| Operating Voltage Range | 9 to 28 VDC Volts Non-polarized |
| Standby Current | ≤120µA@24VDC |
| Maximum Alarm Current (LED On) | ≤20mA@24VDC
(1K Ohm current-limiting resistance) |
| Fix temperature Alarm | 57°C (135°F) A1R |
| Rate of rise Alarm | 7.1°C/5S A1R |
| Height | 48.2mm installed in base |
| Diameter | 99.45mm |
| Operating Humidity Range | ≤95%RH(40oC±2 oC) Relative Humidity, Non-condensing |
| Operating Temperature Range | -10 oC to 50 oC (14 oF to 122 oF) |
| Smoke Alarm Sensitivity | 1.06± .26%FT |
