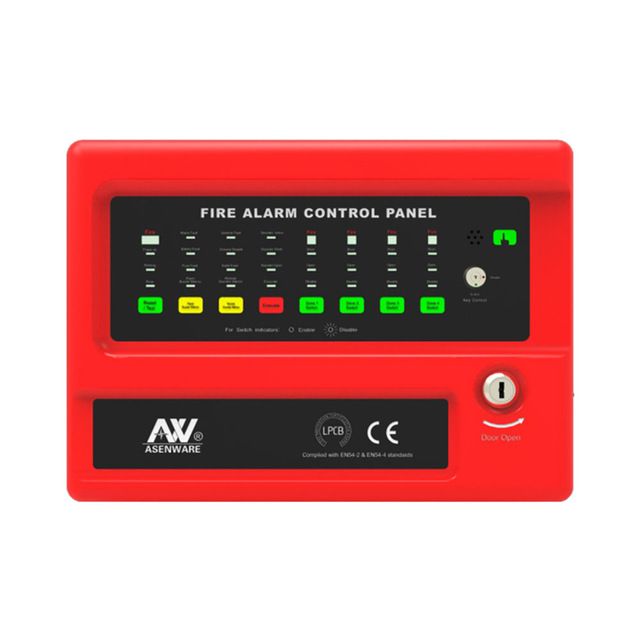

Asenware Conventional 8 Zone Fire Alarm Control Panel
Brand : ASENWARE
Model : AW-CFP2166-8
Country of Origin: UK
Description :
The AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2＆4 standard. And it is the central part of the conventional fire alarm system, designed for applications requiring smoke detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button. The basic unit offers 1 to 8 zones of initiation, up to 16 zones for larger applications.
Technical Specification:
| Item | 8 Zone Panel |
| Model No. | AW-CFP2166-8 |
| Mains Supply Voltage | 110VAC or 240VAC |
| Internal Power Supply | 27.2VDC |
| Total output current limited | 3A @ 240VAC |
| Batteries (Default Configuration ) | 12V2AH*2=24VDC in Total |
| End of line Device | 6.8k Ω, 5% tolerance, 0.25W (color code-blue, grey, red , gold) |
| End of line resistor value | 6.8k Ω, 5% tolerance, 0.25W (color code-blue, grey, red , gold) |
| Dimension (mm) | 395*502*124mm |
| Weight (Without batteries) | 7Kg |
| Weight (With batteries) | 9.6Kg |
