Description

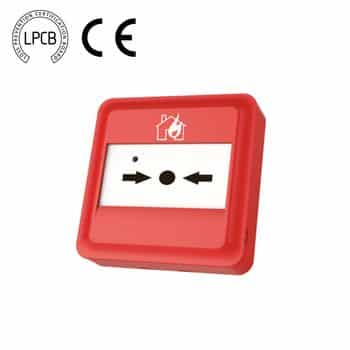

Asenware Addressable Manual Call Point
Brand : ASENWARE
Model : AW-D305
Country of Origin: UK
The AW-D305 Addressable manual call point ( hereinafter referred to AW-D305 Addressable) is mainly designed to be used with an intelligent two-bus control system. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control system which will, after receiving the alarm signal, display the coded address and the equipment status of the manual fire call points. When the manual fire call points is operating normally, the red indicator will blink; when there is a fire alarm, it will remain lit. The AW-D305 Addressable supports electronic coding, more suitable for engineering application convenient.
Technical Specifications:
| Operating Voltage | Signal Loop 24V(18V～28V) Power 24VDC(20VDC～28VDC) |
| Standby Current | Loop＜0.8mA ; Power＜2mA |
| Action Current | Loop＜5mA ; Power＜15mA |
| Output Capacity | 1A@DC30V |
| Input Mode Setting | NC or NO input mode can be set by the jumper JP4. |
| Programming Method | Electronically addressed |
| Code Range | One address within 1~324. |
| Indicators | Inspection indicator: l blink once about every 12 seconds in the inspection status or remain lit in the output status; Input indicator : remain lit in the feedback status. |
| Operating Temperature | -10℃～+55℃ |
| Relative Humidity | ≤95% , non-condensing |
| Material of Enclosure | ABS |
| Dimension (L×W×H) | 86mm×86mm×41mm (with base) |
| Mounting Hole Distance | 60.5mm |
| Weight | About 148g (with base) |
| Operating Voltage | Signal Loop 24V(18V～28V) Power 24VDC(20VDC～28VDC) |
| Certificate | CE, LPCB |
