Description

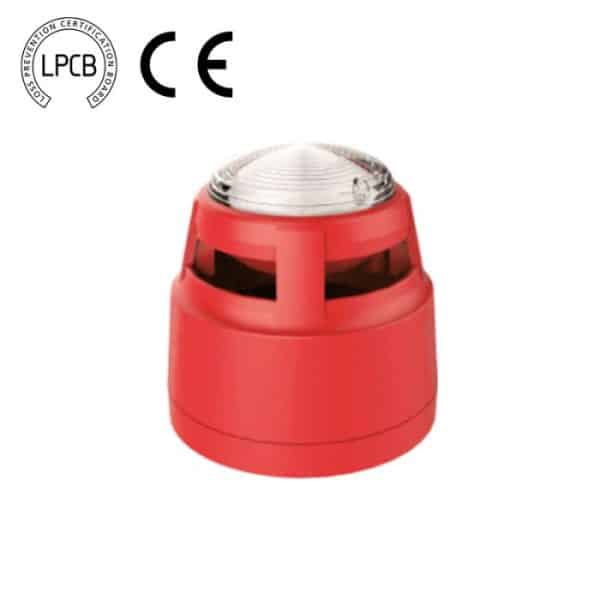

Asenware Addressable Fire Alarm Strobe Sounder
Brand : ASENWARE
Model : AW-D306
Country of Origin: UK
AW-D306 Addressable Sounder Beacon can give audible and visual alarms after being connected to a DC24V power supply and a bus loop. It can be used with a bus-type fire alarm control panel. After receiving a start command given by the fire alarm control panel following an accident, the Sounder Beacon will begin to work. At this moment, the Sounder Beacon will give a dazzling visual alarm signal and a harsh audible alarm signal ,to remind the persons on the scene of the accident , the fact that a fire has occurred on the site ,quickly and necessity to take related evacuation measures, thus preventing the fire accident from becoming a major one.
The Sounder Beacon may be used to give audible alarms and visual alarms at the scenes of accidents.It is applicable to places like high-rise residential buildings, public places, hotels, amusement buildings, factories, shopping centers, hospitals, schools, office buildings and stock exchanges, and particularly to the places with a low visibility or the possibility of generation of smoke
Technical Specifications:
| Loop input | DC24V(18-28V),≤1mA(monitoring status),≤3mA(alarm status) |
| Power input | DC24V(20-28V),≤4mA(monitoring status),≤130mA(alarm status) |
| Power consumption | ≤3.2W@DC24V |
| EN54-23 Coverage | C-3-8/W-2.4-6(coverage volume see the following figures) |
| Flash Color and Frequency |
White, 0.5Hz |
| Light Output Synchronization |
Meets EN54-23 |
| Sound Level | See the following table”Sound Level Data” |
| Ingress Protection Rating |
IP21C |
| Operating Temperature | -10℃ ~ +50℃ |
| Relative Humidity | ≤95%, non condensing |
| Material of Lens/Body | Flame retardant PC/ABS |
| Dimension | ф100mm×100.5mm( with the base) |
| Mounting Hole Spacing | 45mm ~ 70mm |
| Weight | About 270g (with the base) |
| Loop input | DC24V(18-28V),≤1mA(monitoring status),≤3mA(alarm status) |
| Certificate | CE, LPCB |
