Description

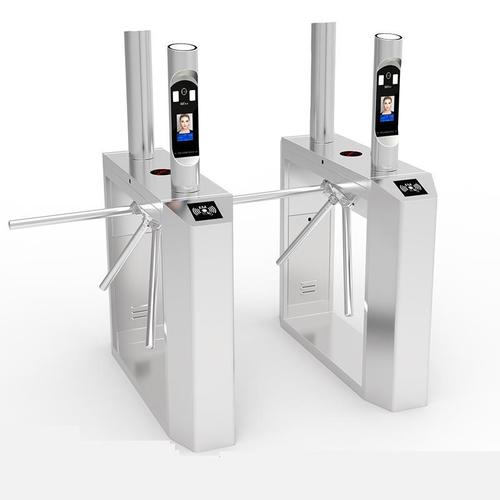

Arm Drop tripod turnstile Barrier gate Complete Solution
| Technical parameters | |
| Housing material | 304 stainless steel |
| Dimensions | L1200 x W200 x H980mm |
| Arm length | 300mm |
| Weight | 80Kg |
| Power of motor | DC24V |
| Voltage | AC220V��10% |
| Frenquency | 50Hz |
| MCBF | 5 million cycles |
| Transit speed | 35 persons/min |
| Operating environment | Indoor/outdoor (Shelter) |
| Operating temperature | -30��C ~ 60��C |
| Operating humidity | ��95% no condensation |
Features
1.Incorporating advanced hydraulic kinetic buffering technology to ensure fast and smooth operation.
2.Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering complete entrance control solutions.
3.Equipped with LED directional indication / status lights.
4.Equipped with mechanical Fail-Safe mode. In the case of power failure, the Tripod arms can be triggered to drop automatically to ensure unblocked access.
5.The positive action lock also helps in preventing two passage at one time.
6.Anti-Illegal Entry with forced rotation feature which can withstand force of up to 80kg.
7.Unique tripod design ensures safe and reliable operation. Highly durable design ensures life span more than 5 million cycles.
8.When the turnstile arms have rotated for more than 60 degrees, the mechanical override will be activated automatically to prevent tailgating.
9.Automatic reset: if a person fails to pass within the specified time after the turnstile is opened, the system will cancel authorization of this access automatically.
10.The emergency button which can ensure unblocked access is available.
