Anviz OC500 RFID Time Attendance and Access Control

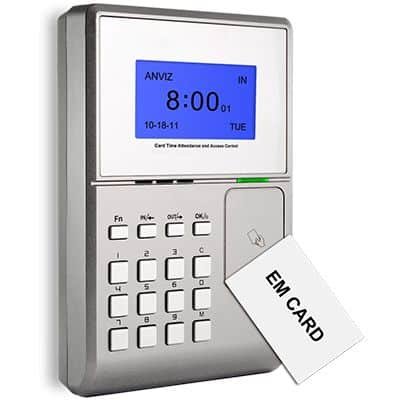

OC500 RFID Time Attendance and Access Control
Description: OC500 proximity card time attendance and access control is standard USB Device, USB Host, TCP/IP, optional RS232. Dry contact, Wiegand26 input, and output. 6-digit work code, 15 groups, 32 time zones, 30 bell schedulers, and 50 short messages. OC500 has a standard TCP/IP module. It has multiple identification methods such as card only, ID+password, password+card. Two in one: time attendance and access control function. Clear voice prompts along with all operations.
Anviz OC500. Access control and presence of Anviz terminal. ID by RFID EM/MIFARE 125KHz card, ID, password, and combinations. 20.000 cards, 200.000 regs. 1 relay output. Wiegand output. TCP/IP, USB host, Mini USB. 8 self-defined states. Door sensor, switch, input/output Wiegand 26. 12V DC. Oc500 metal RFID/Mifare time attendance & access control.
Time Attendance and Access Control Management System
Employee Management: Unify Employee management.
Device Management: Quick Add, Easy Setting.
Shift Management: Manual and intelligent shift schedule.
Export Management: Flexible and Practical Report output.
Anviz OC500 Feature
- Texas Instruments 32-bit high-speed CPU of low power consumption,
- Clear voice prompts along with all operations,
- USB Plug & Play connection. No driver needed,
- TCP/IP connectivity,
- USB pen drive data download,
- Real-time data transfer and WEB online tracking,
- Optional13.56MHZ Mifare or HID card reader,
- Various employee authentication methods,
- Easy combination of password and card,
- 16 different customizable time and attendance status,
- 6-digit work code to calculate different job cost,
- Public and private short message display,
- Support 12V power supply for electric/magnetic locks,
- Relay output for easy integration with bell ring or electric/magnetic lock system,
- Advanced access control with 16 groups and 32 time zones available
- Standard Wiegand output for seamless integration with access controller,
- Wiegand input to connect external fingerprint, card or keypad reader,
- Support multiple display and software language.
Anviz OC500 Parameter
| Capacity | |
| Card Capacity | 20,000 |
| Log Capacity | 200,000 |
| Interface | |
| Comm | TCP/IP, USB Host, Mini USB, Optional RS232 |
| Relay | Relay Output |
| I/O | Door Sensor, Switch, Wiegand26 In&Out |
| Feature | |
| Identification Mode | Card, ID+PW, PW+Card |
| Verification Speed | <0.5 Sec |
| Self-defined Status | 8 Customizable time and attendance status |
| Short Message | 50 |
| Scheduled Bell | 30 |
| Groups & Time Schedules | 16 Groups, 32 Time Zones |
| Workcode | 6 digit |
| Software | Anviz Crosschex Standard |
| Hardware | |
| CPU | 32-Bit High Speed CPU |
| Sensor | AFOS |
| Scan Area | 22m*18mm |
| Resolution | 500 DPI |
| RFID Card | Standard 125KHZ EM RFID, Optional 13.56MHZ Mifare |
| Dimensions(WxHxD) | 125x189x35mm (4.9×7.4×1.4″) |
| Temperature | -30℃~60℃ |
| Power | DC 12V |
OC500 RFID Application
